5  Getting Started with Climate Data

This sections introduces you to the basics of using Climate Data Operators (CDO) to efficiently manipulate and analyze netCDF files, which are commonly used for storing climate data. CDO is a powerful command-line toolset designed to handle several climate data formats, allowing you to perform tasks such as data conversion, averaging, regridding, etc.

More info go directly to the Max Planck Institute CDO website

5.1 CDO Installation Process

5.1.1 MacOS

Follow the instruction and downloaded MacPorts. MacPorts is an open-source community initiative to design an easy-to-use system for compiling, installing, and upgrading the command-line on the Mac operating system.

MacPorts website MacPorts download

Setup CDO in MacOS (Updated Instructions)

1. Install CDO:

• After MacPorts installation, open the Terminal and type

sudo port install cdo

• Enter your password

2. Verify the Installation:

• To verify that CDO is installed, type:

cdo --version

This command will display the installed version of CDO

Homebrew Alternative

You can use Homebrew, another popular package manager for macOS. To install CDO with Homebrew:

brew install cdo

5.1.2 Windows

In the current Windows version(s) Microsoft includes an Ubuntu 16.04 LTS embedded Linux. This environment offers a clean integration with the windows file systems and and the opportunity to install CDO via the native package manager of Ubuntu.

Setup CDO in Windows (Updated Instructions)

1. Enable Windows Subsystem for Linux (WSL):

• Open PowerShell as Administrator and run:

wsl --install

• This command installs the Windows Subsystem for Linux along with the latest Ubuntu distribution available from the Microsoft Store. If you already have WSL installed but want to upgrade or change your Linux distribution, you can manually select it from the Microsoft Store.

2. Install Ubuntu Distribution:

• Go to the Microsoft Store and search for Ubuntu
• Install the latest version of Ubuntu (e.g., Ubuntu 20.04 LTS or Ubuntu 22.04 LTS)

3. Open the Ubuntu Terminal:

• Once installed, open the Ubuntu terminal from the Start menu

4. Update and Install CDO:

• In the Ubuntu terminal, update your package list:

sudo apt update

• Install CDO using the package manager:

sudo apt install cdo

• Enter your password when prompted

5. Verify the Installation:

• To verify that CDO is installed, type:

cdo --version

This command will display the installed version of CDO

Important

• Windows Subsystem for Linux 2 provides a full Linux kernel and better performance. If you’re using an older version, you might want to upgrade to WSL 2 by following instructions on the WSL 2 documentation page

• The Ubuntu terminal has seamless access to your Windows file system, so you can use CDO on files stored on your Windows drives directly

5.2 ncview: a netCDF visual browser

ncview is a fast and user-friendly visual browser for exploring netCDF files. Mainly designed for Linux and macOS, ncview provides an intuitive interface to quickly view and analyze the contents of any netCDF file, making it a convenient tool for data exploration and preliminary analysis.

installing ncview

1. Open the Terminal and type:

sudo port install ncview

2. Verify the Installation:

• To verify that ncview is installed, type:

ncview --version

This command will display the installed version of ncview

ncview for Windows?

ncview is designed for Unix-like environments (Linux and macOS). However, the installation can be achieved by using Windows Subsystem for Linux (WSL):

1. Install Windows Subsystem for Linux (WSL):

• Open PowerShell as Administrator and run:

wsl --install

• This command installs WSL along with a default Linux distribution, such as Ubuntu. If you already have WSL, make sure it is set to version 2 by running:

wsl --set-default-version 2

2. Install Packages:

• Open the Ubuntu terminal (or your chosen Linux distribution) and update your package list:

sudo apt update

• Install the required dependencies for ncview:

sudo apt install ncview

3. Verify the Installation:

ncview

• This should start ncview if the installation was successful

4. X server (VcXsrv) for ncview

• Download and install VcXsrv from official GitHub releases page
• Launch VcXsrv after installation
• Set the DISPLAY Environment Variable in WSL

export DISPLAY=$(grep nameserver /etc/resolv.conf | awk '{print $2}'):0.0

5.3 Working with CDO and ncview

For the purpose of this workshop and to demonstrate how to use CDO (Climate Data Operators) and ncview, I have included two netCDF files of dynamical fronts (i.e., FSLE - Finite Size Lyapunov Exponent) in the workshop repository you have already cloned. These files are located in the data_raw/2016 directory.

To work with CDO and ncview, you’ll need to use the terminal command line. Open the Ubuntu app in Windows or the Terminal on macOS.

CDO and ncview from the terminal command line

1.1 Data Directory

• In your command line, type:

cd /Users/ibrito/Desktop/NACECC_workshop/data_raw/2016/

# Navigate to the directory where you have stored the workshop repository
# Note: The path below is specific to my local computer. Please replace it with your own directory path

• This command sets NACECC_workshop as your primary working directory

1.2 Windows Users

• If your workshop repository is located on the Desktop, the path should be within the /mnt/c/Users/YourUsername/Desktop/ directory

cd /mnt/c/Users/YourUsername/Desktop/NACECC_workshop/data_raw/2016/
# Replace YourUsername with your actual Windows username.

2. Viewing Data with ncview

• Check if your data file is in the directory by listing the files:

ls -l
# This command will display the contents of the data directory

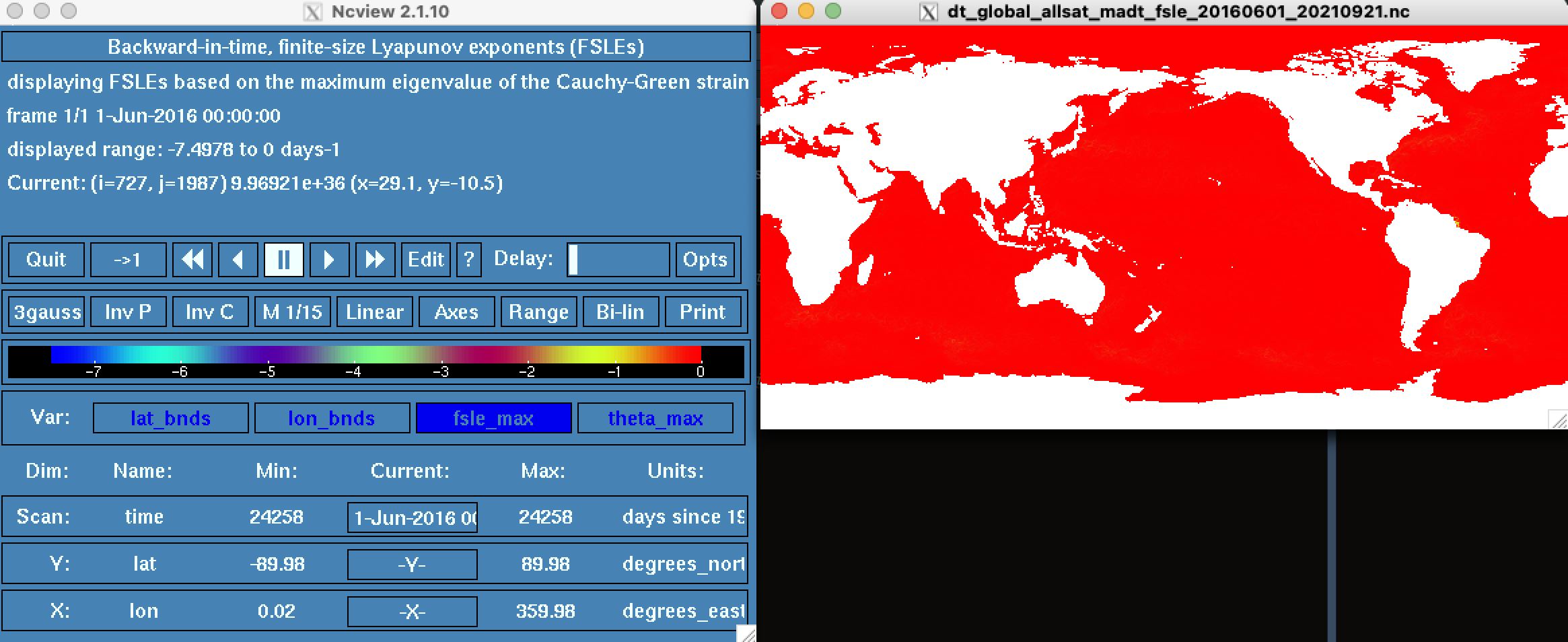

• To quickly view the netCDF file using ncview, type:

ncview dt_global_allsat_madt_fsle_20160601_20210921.nc

• In Windows remember to run first:

export DISPLAY=$(grep nameserver /etc/resolv.conf | awk '{print $2}'):0.0

ncview dt_global_allsat_madt_fsle_20160601_20210921.nc

3. File Details with CDO

• To inspect the metadata and structure of the netCDF file using CDO, type:

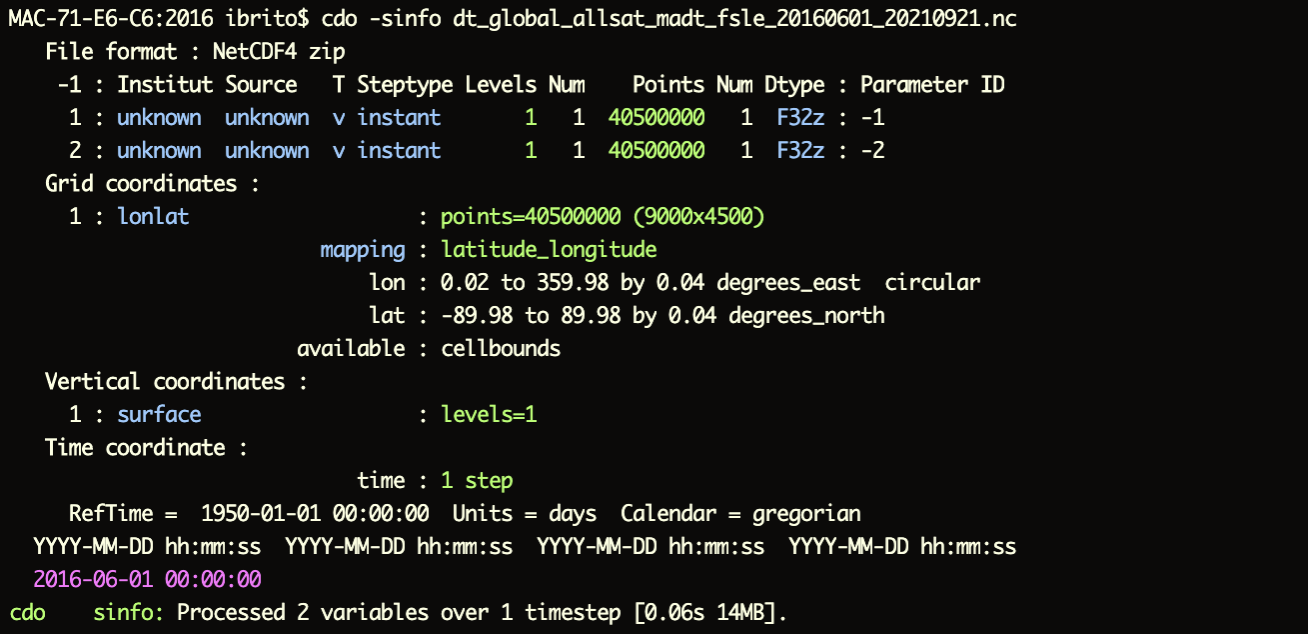

cdo -sinfo dt_global_allsat_madt_fsle_20160601_20210921.nc
# This command provides detailed information about the file, such as variable names, dimensions, and attributes.

The model details are:

• Horizontal component: resolution 9000x4500 (~4km)
• Vertical component: 1 level (i.e., surface)
• Time component: 1 step

4. Check variable(s) name

• To get the variable names from a netCDF file using CDO, you can use the showname function:

cdo showname dt_global_allsat_madt_fsle_20160601_20210921.nc

The model variables are: fsle_max theta_max(Sudre, Hernández-Carrasco, et al. 2023)

Warning

• X Server for ncview on Windows: If you’re using ncview on Windows, ensure you have an X server (like VcXsrv or Xming) running to properly display the graphical interface
• Error Handling: If you encounter any errors, double-check that CDO and ncview are correctly installed and that you are using the correct file paths

5.4 Ocean Front dataset: AVISO product

For the primary purpose of this workshop, we will use AVISO products, primarily focusing on ocean fronts. AVISO is the French Active Archive Data Center for multi-satellite altimeter missions. It is responsible for post-processing, analyzing, archiving, and distributing altimetry data for CNES (Centre National d’Études Spatiales), the French Space Agency.

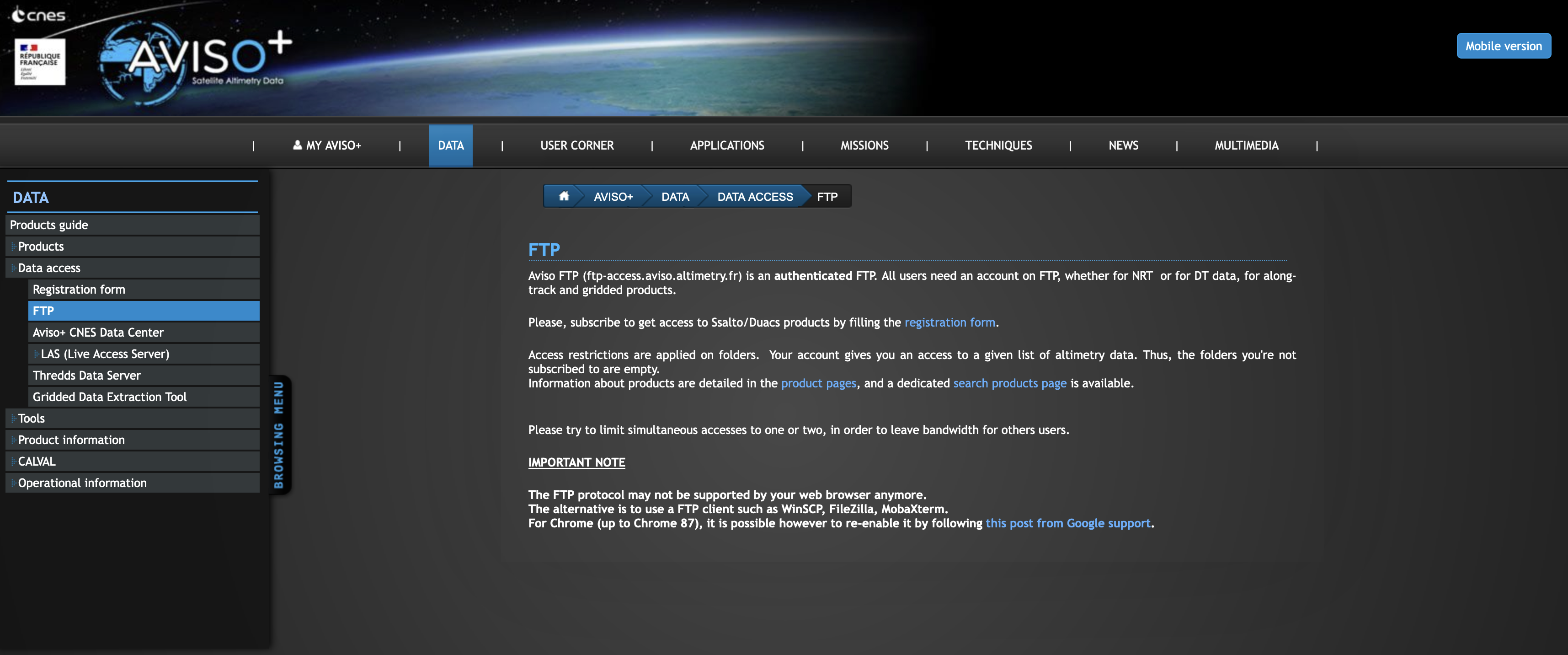

You can set up an account and start downloading datasets for your research. Visit the website here: https://www.aviso.altimetry.fr

Note

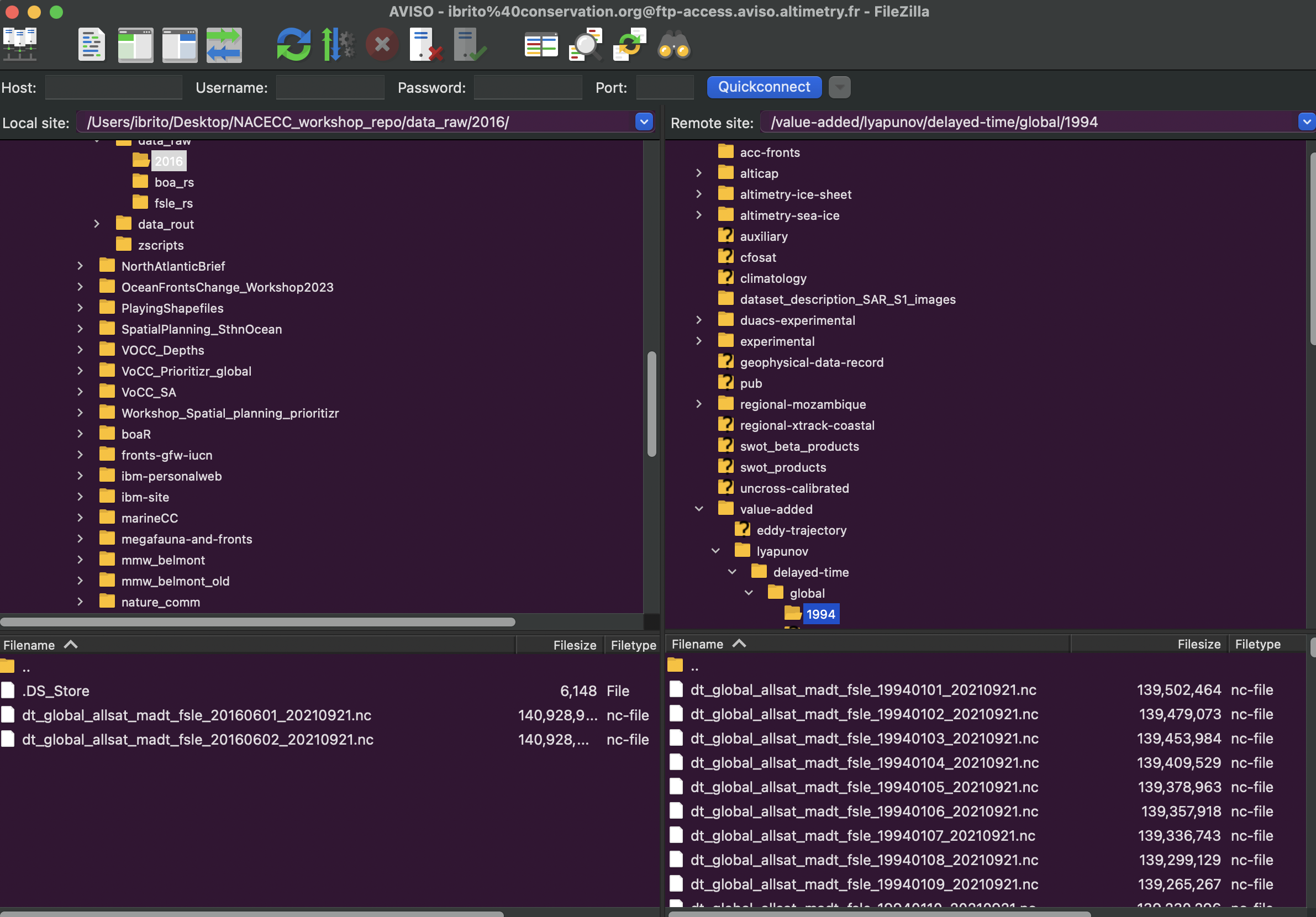

I strongly recommend downloading the data via FTP to simplify your workflow. You can use FTP clients such as WinSCP, FileZilla, or MobaXterm.

5.4.1 Dynamical fronts: Finite-size lyapunov exponent (FSLE)

In simple terms, the Finite-size Lyapunov Exponent (FSLE) is a tool used to understand how the ocean moves and mixes. FSLE helps identify lines in the ocean that act like barriers or pathways. High FSLE values highlight lines that act as transport barriers (known as Lagrangian coherent structures), which help identify features like filaments, fronts, or eddy boundaries.

More information on these aspects, please read (Sudre, Dewitte, et al. 2023)

5.4.2 Procesing FSLE data from AVISO (or any other climate data)

You do not actually have to download the front dataset from AVISO at this point. We will use the dataset located in the workshop repository that you have previously cloned.

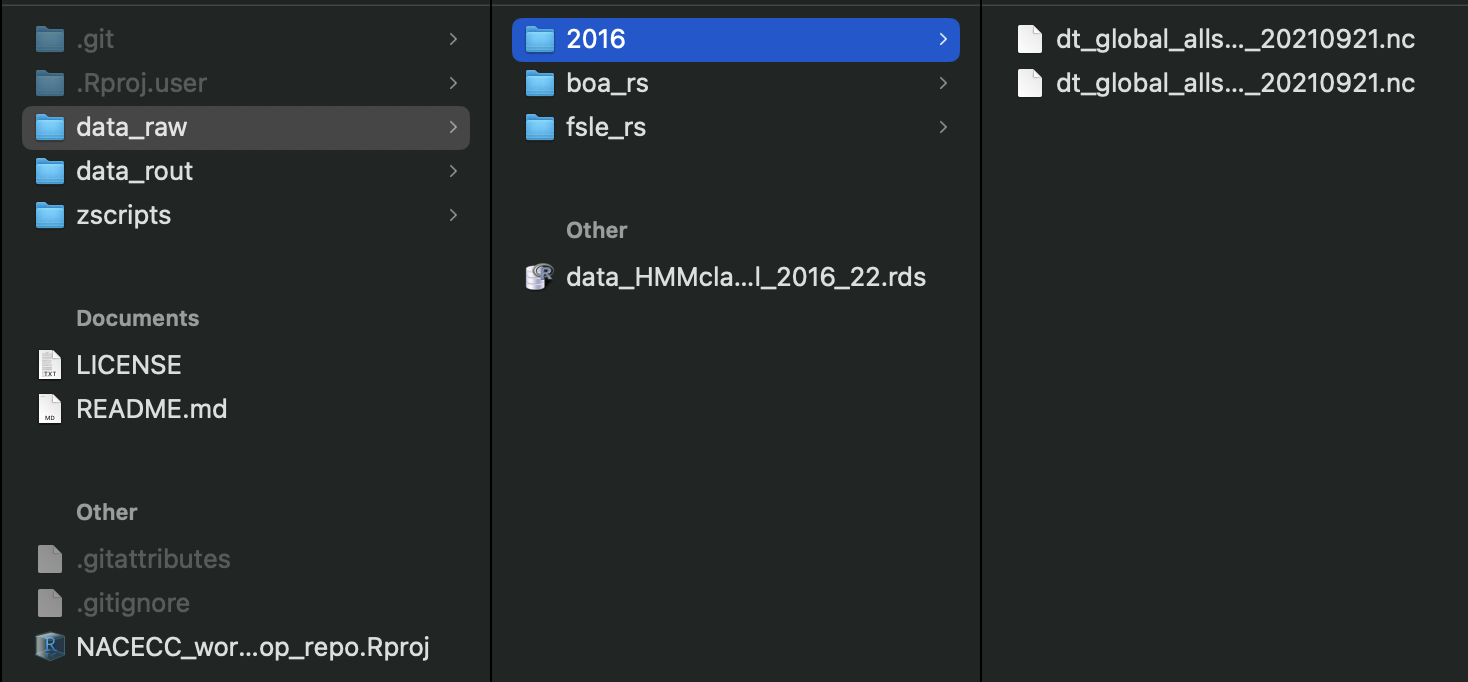

NACECC_workshop_repo

• Go to the location where you cloned the repository

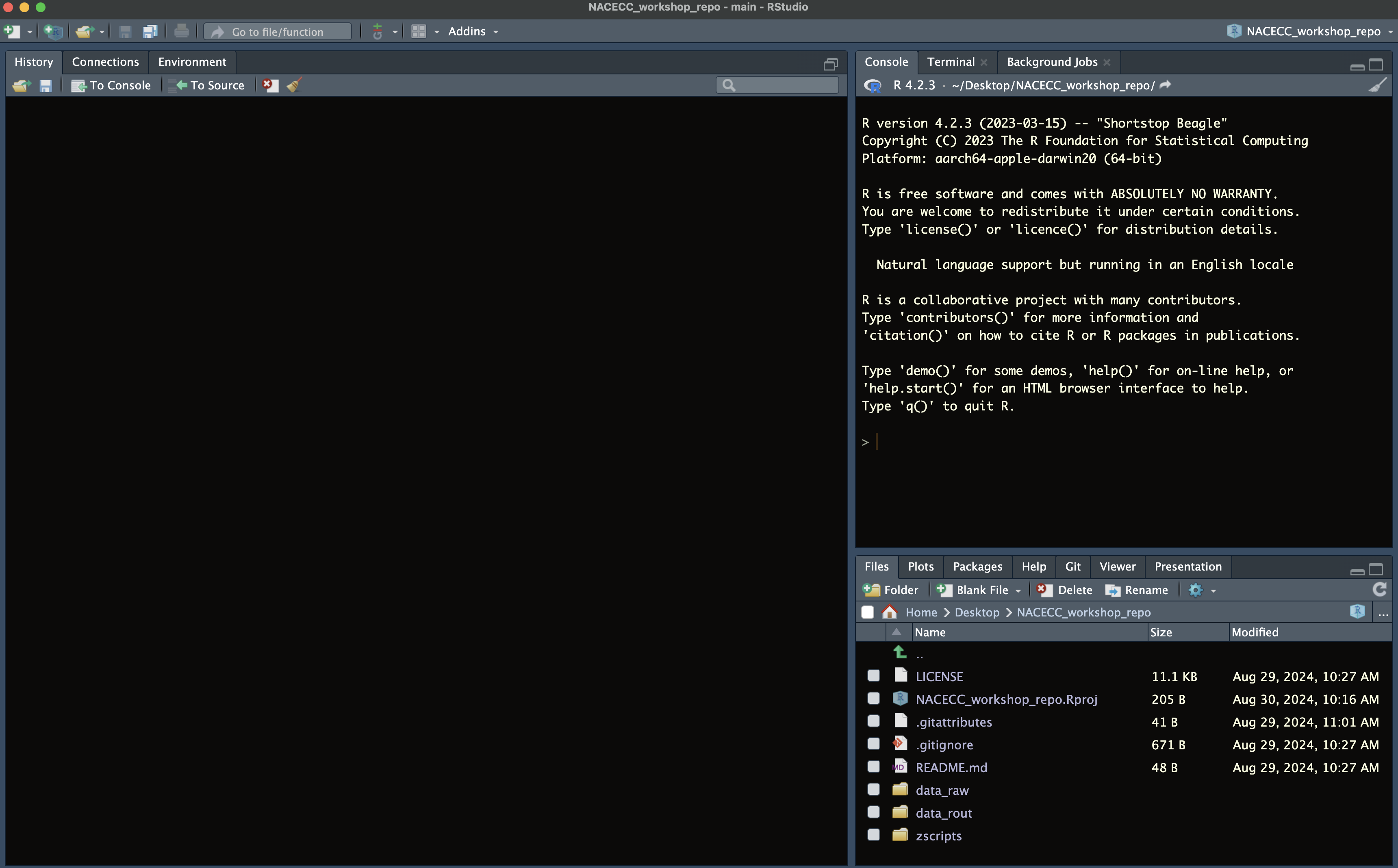

• Open the NACECC_workshop_repo.Rproj file
• This process should open a new R session in RStudio and, by default, set the NACECC_workshop_repo as the working directory, with relative paths

The AVISO dataset on fronts consists of individual daily files of 140 MB each, covering the period from 1994 — 2023. You can imagine that processing these files in R could be quite challenging. R will need to use YOUR local memory just to read these files, and any additional tasks we need to perform (such as aggregating, merging, calculating averages, minimums, maximums, etc.) will also rely on your local computer’s internal memory.

Example 1: Using CDO to merge files

This is the structure of the NACECC_workshop_repo repository that we have cloned. I did not include all the AVISO files; as an example, we will work with only 2 files. You can repeat the same exercise with however many files you have for your projects.

To better handle front or any other climate data, organizing the dataset by year or month is the way to go. In fact, the IPCC data structure typically works with monthly files (and sometimes yearly files).

Using CDO to merge files is simple. We will have to use -mergetime operator in the directory. For example, using the terminal or the RStudio terminal tab:

# Navigate to the directory where the front data is stored
cd data_raw/2016/

# Check how many NetCDF files are in the directory
ls -l *.nc

# Combine the two NetCDF files
cdo -mergetime *.nc combined_file.nc

The CDO Syntax is very simple. It requieres:

• cdo -Operator input_files output_files

From the code before we can see:

# Specify the operator for merging files
Operator == "-mergetime"

# Define the input files (using wildcard * to identify all .nc files in the directory)
input_files == "*.nc"

# Define the output file name (make sure to include the extension)
output_files == "combined_file.nc"

Example 2: Check the new file and plot it using ncview

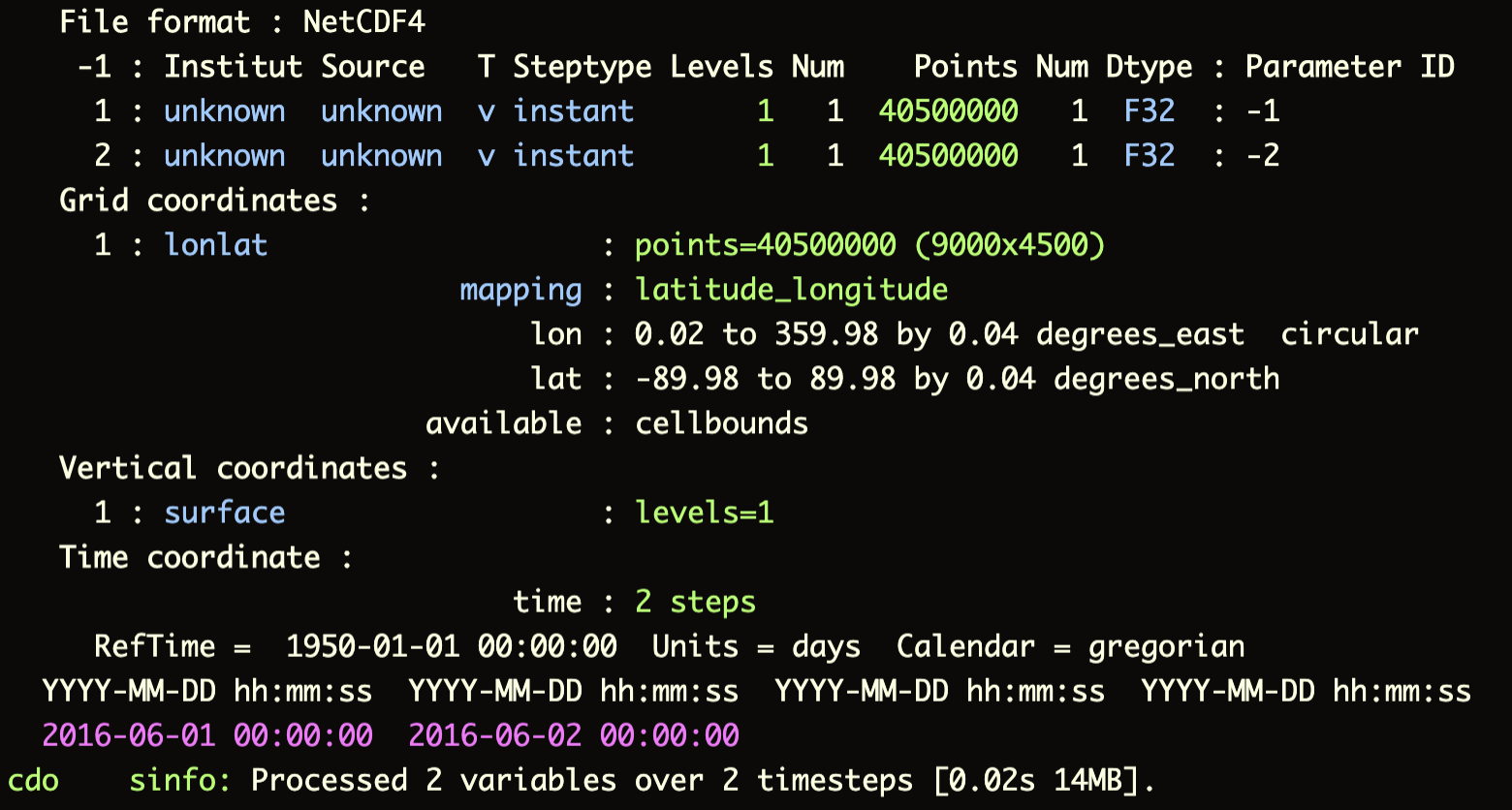

To check the structure of the new combined_file.nc file, we will use the -sinfo operator. In the same directorty data_raw/2016/, type (using the terminal or the RStudio terminal tab):

cdo -sinfo combined_file.nc

To quickly plot the new combined_file.nc using ncview, type:

ncview combined_file.nc

5.4.3 Thermal fronts

Thermal fronts are typically derived from remotely sensed sea surface temperature (SST) data. While this eBook does not cover this specific type of data, calculating thermal fronts is essentially based on estimating thermal gradients. In the R package terra, you can estimate the thermal gradient on any raster by simply using the slope argument in the terra::terrain() function. This approach allows you to identify areas where the temperature changes rapidly over space, in which high values corresponds to thermal fronts.

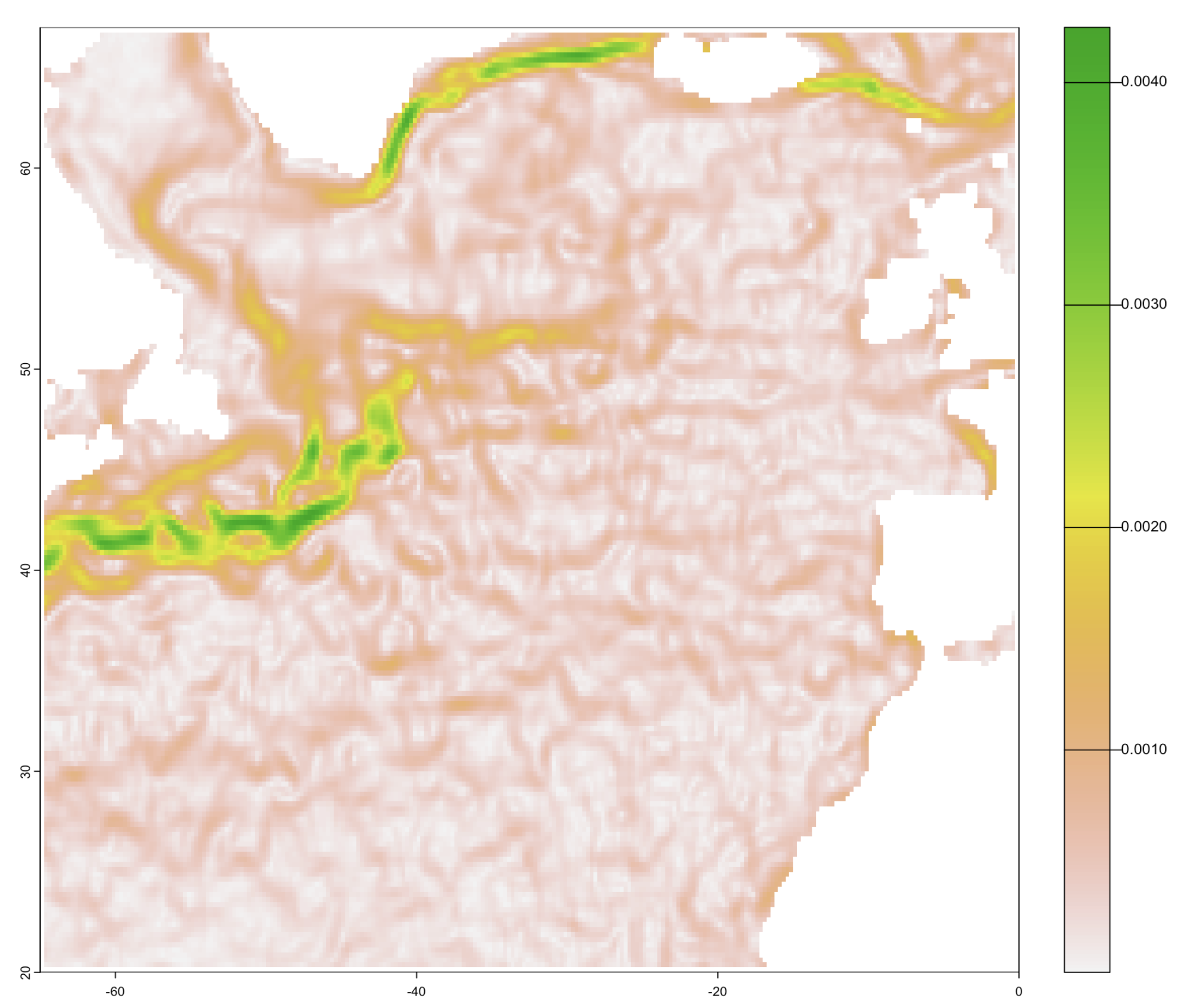

thermal fronts calculation

library(terra)

# Read the raster stack of sea surface temperature (SST) from the NOAA product at 0.25 degrees resolution
rs <- rast("data_raw/thermal_rs/oisst-avhrr-v02r01_19832000_mmean.tif")

# Plot the first layer of the raster stack to visually check the data
plot(rs, 1)

# Calculate the slope (thermal gradient) for the first layer of the SST data
slp <- terra::terrain(subset(rs, 1), "slope")

# Plot the calculated slope to visually inspect the result
plot(slp)

5.5 Exploring Useful CDO Functions

CDO provides a wide range of functions for processing and analyzing climate data in netCDF format. Below are some of the most commonly used functions, along with additional operators that can be useful for specific tasks.

CDO Functions

1. Commonly Used

• cdo -yearmean: Calculates the annual mean from a monthly data input netCDF file
• cdo -yearmin: Calculates the annual minimum from a monthly data input netCDF file
• cdo -yearmax: Calculates the annual maximum from a monthly data input netCDF file
• cdo -ensmean: Computes the ensemble mean across multiple netCDF files. This is particularly useful when you have input files from - different models and want to calculate the mean across all models
• cdo -vertmean: Calculates the vertical mean for netCDF files with ocean levels (e.g., depth)
• cdo -mergetime: Merges all netCDF files in your directory into a single file, combining data over time

2. Additional Operators

• cdo sellonlatbox,170,-170,-10,-30 input_file.nc output_file.nc: Selects a specific region within the data, defined by the longitude and latitude box (in this case, from 170° to -170° longitude and from -10° to -30° latitude)
• cdo -remapbil,r1440x720 -select,name=thetao input_file.nc output_file.nc: Performs bilinear interpolation to remap the data to a 1440x720 grid, selecting the variable thetao (temperature at depth).
• cdo -remapdis,r1440x720 -select,name=thetao input_file.nc output_file.nc: Performs distance-weighted interpolation to remap the data to a 1440x720 grid, selecting the variable thetao.
• cdo -remapbil,r4000x2000 -select,name=fsle input_file.nc output_file.nc: Performs bilinear interpolation to remap the data to a 4000x2000 grid, selecting the variable fsle (Finite-size Lyapunov Exponent)

5.6 Workflow for using climate model outputs

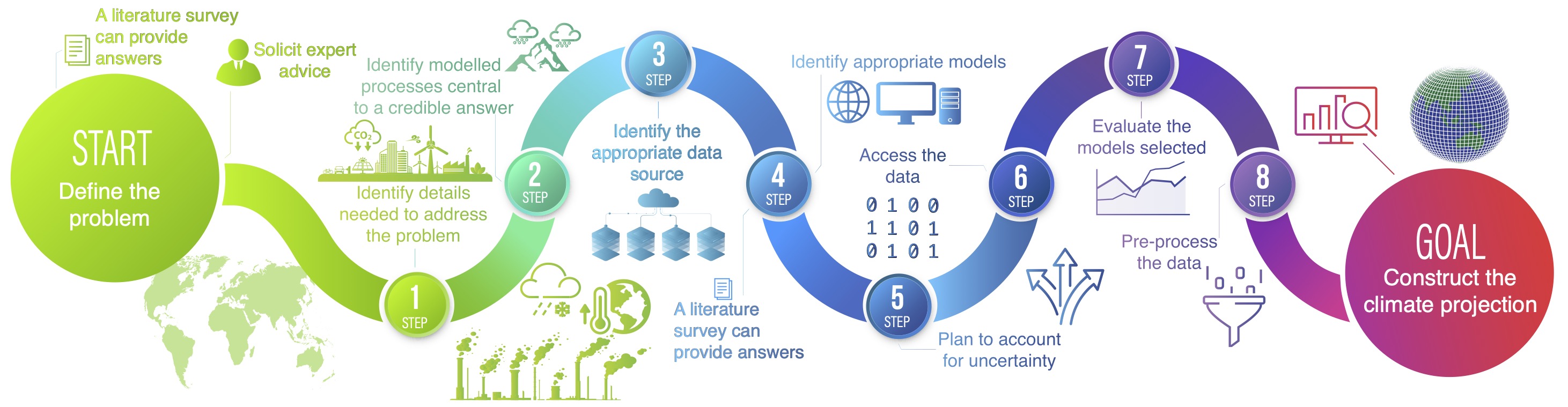

For those seeking to incorporate climate models into their professional work to address climate change, understanding the starting point can be challenging. Here is a framework, detailed in our recently published paper online (Schoeman et al. 2023).
